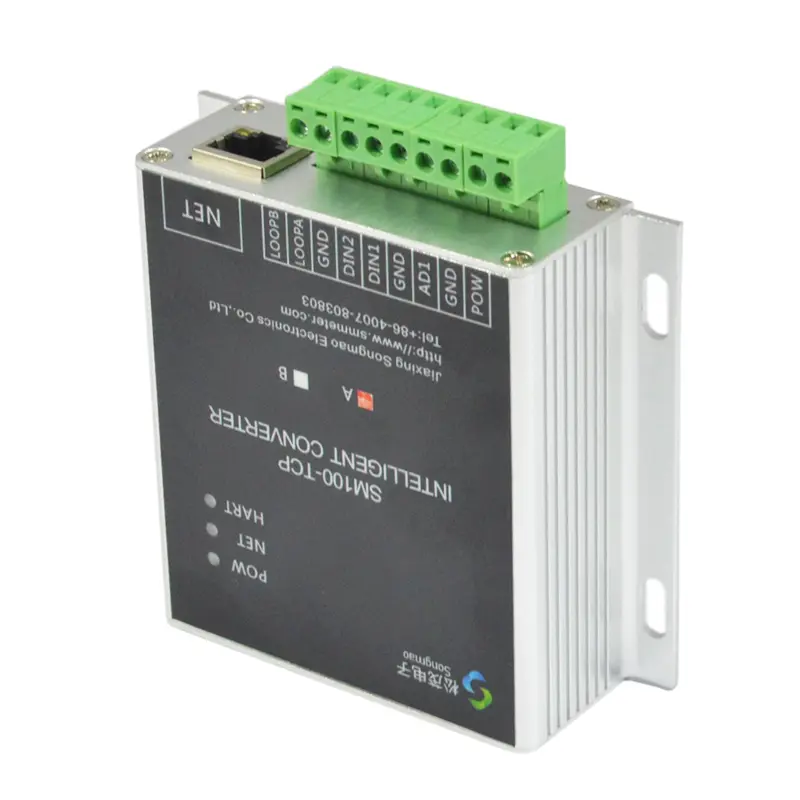

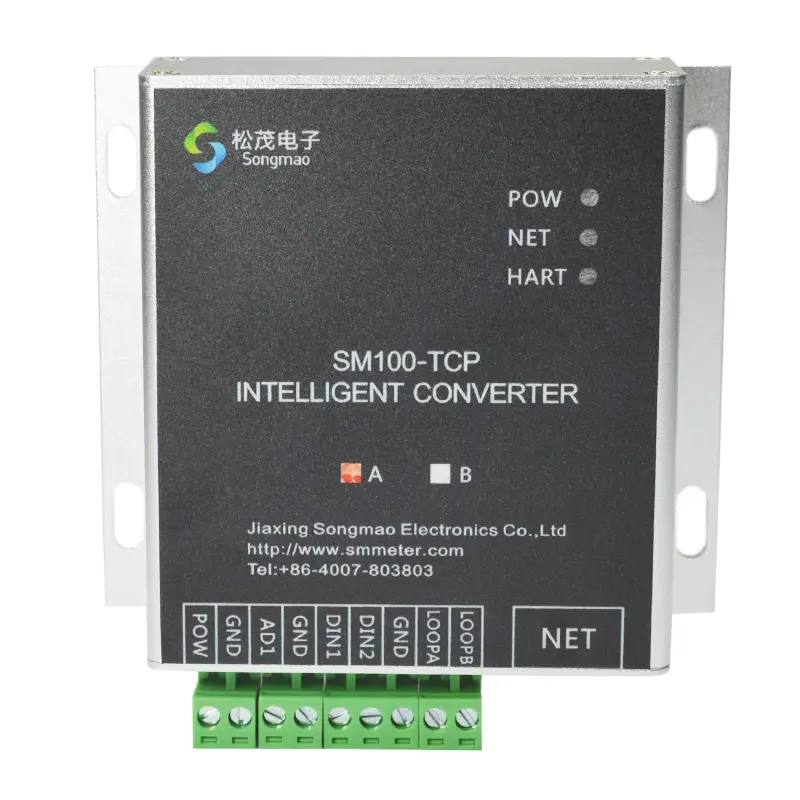

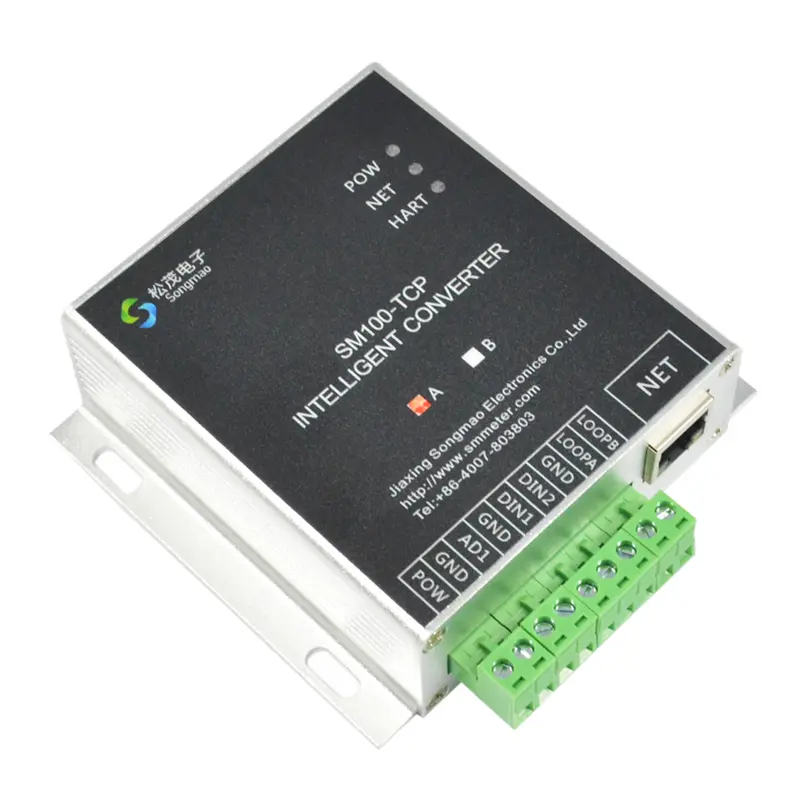

SM100-TCP intelligent converter is a high-tech product integrating HART protocol and TCP/IP communication. It is a micro RTU system. It is composed of high precision operational amplifier, interface chip, watchdog circuit, input and output circuit, and embedded TCP/IP gateway module and Hart modem chip. It has the characteristics of stable performance and high cost performance.
Because the SM100-TCP smart converter is designed for industrial integration, it adopts special design in terms of temperature range, vibration, electromagnetic compatibility and interface diversity to ensure stable operation in harsh environments and provide high quality assurance for your equipment.

Send Inquiry

Product Description

★

Product Features

  • With one way of analog sampling, 32-bit high-precision A/D simultaneous sampling function.
  • Two-way switching value sampling function.
  • With one HART interface.
  • Parameters, range and zero point of data acquisition can be configured.
  • With power-off memory function, parameters do not need to be reset after power off.
  • Equipped with large-capacity EEPROM, save data according to the set saving interval.
  • The power supply and HART communication indicator can clearly indicate the working status of the collector.
  • Read data directly from the instrument via HART protocol.
  • All operating parameters can be queried and set both locally and remotely.
  • Parameters can be configured via Ethernet.
⚙

Main Parameters

  • Installation dimension: length 61 mm × width 94 mm.
  • Shell size: length 94 mm × width 103 mm × height 33 mm.
  • Working temperature: -20 ℃ ~ + 80 ℃.
  • Storage temperature: -25 ℃ ~ + 80 ℃.
  • Power input voltage: DC 9 ~ 24V.
  • The analog input impedance is 250Ω, which can collect DC 4 ~ 20mA and DC 0 ~ 5V signals.
  • HART protocol sampling resistance is 250 Ω.
  • Protection class: IP65.
↓

Download Resources

SM100-TCP Zip File
SM100-TCP.zip
download icon
User Manual PDF
SM100-TCP-User_Manual.pdf
download icon
🌐

Communication Applications

SM100-TCP and its communication application with Emerson 644 instruments
SM100-TCP communication application with Siemens pressure transmitter SITRANSPDSIII
The communication application of SM100-TCP with Shanghai Foxboro Instruments
The SM100-TCP communicates with the FKG604HC intelligent pressure transmitter of Wuxi Kunlun Fuji
🛡

Post-sale Service

All products of our company come with a three-year warranty.

If you encounter any problems during use, please contact us for technical support.

?

FAQ

Are you a factory or trading company?
We are a high-tech enterprise factory integrating R&D, production and sales. We have a complete ERP system and equipment to meet your procurement needs.
What is the delivery time?
Goods will be dispatched within three working days after receiving the payment.
What is the Minimum Order Quantity (MOQ)?
Under normal circumstances, we support a minimum order of one piece.
Is OEM service available?
Yes, products can have your logo printed or be customized according to your design.
How many HART instruments can the SM100-TCP be connected to?
One HART instrument can be connected.
Can MODBUS-TCP be used as a server?
It can be used as both a server side or a client side.
