Wholesale 32-Channel HART Data Collector | HART Gateway to MODBUS TCP & RTU Converter | China Suppliers & Factory Manufacturer, Manufacturers

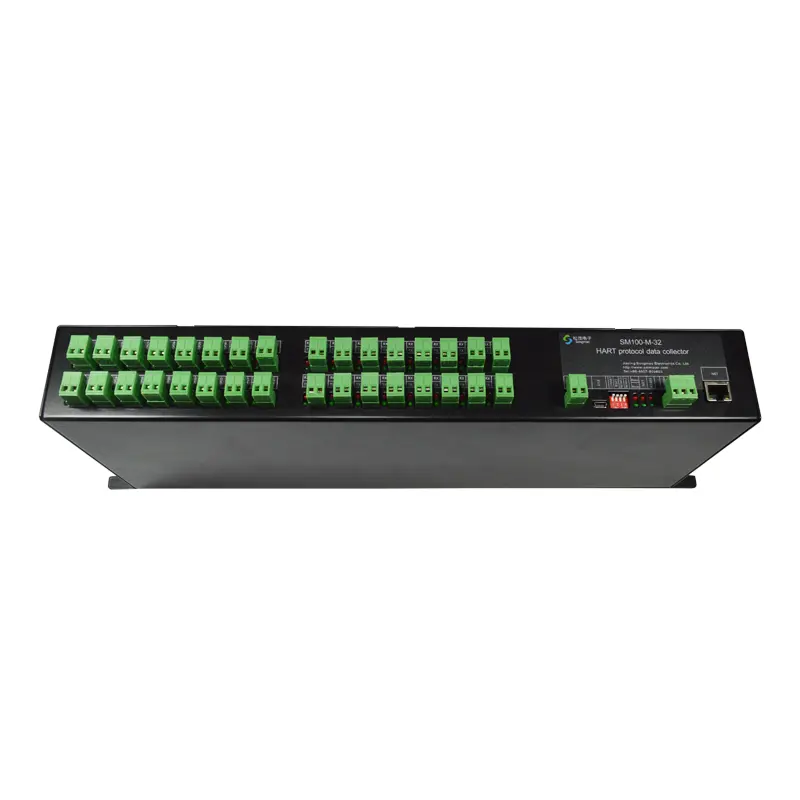

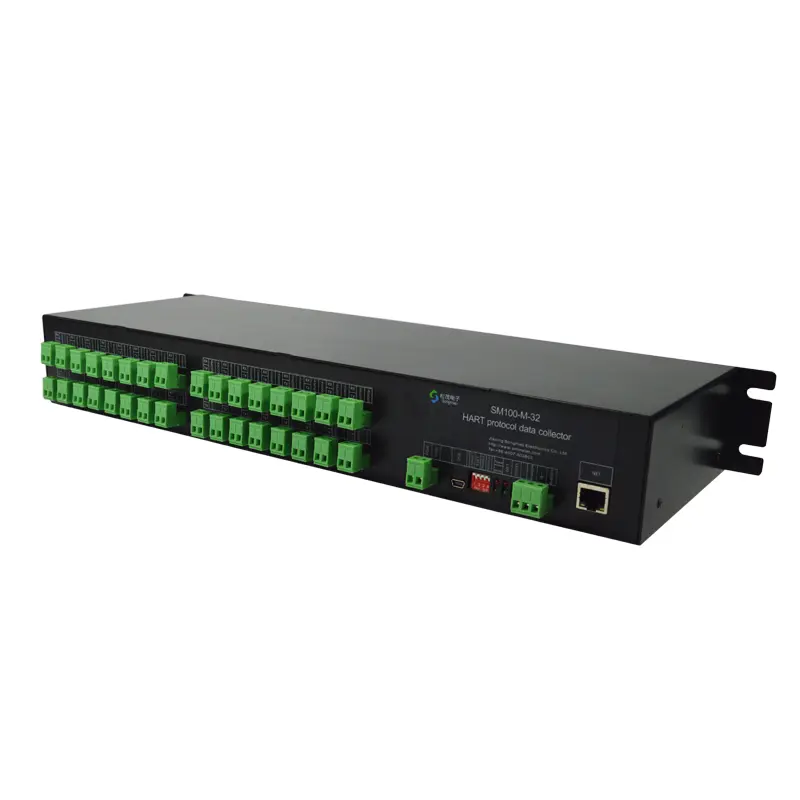

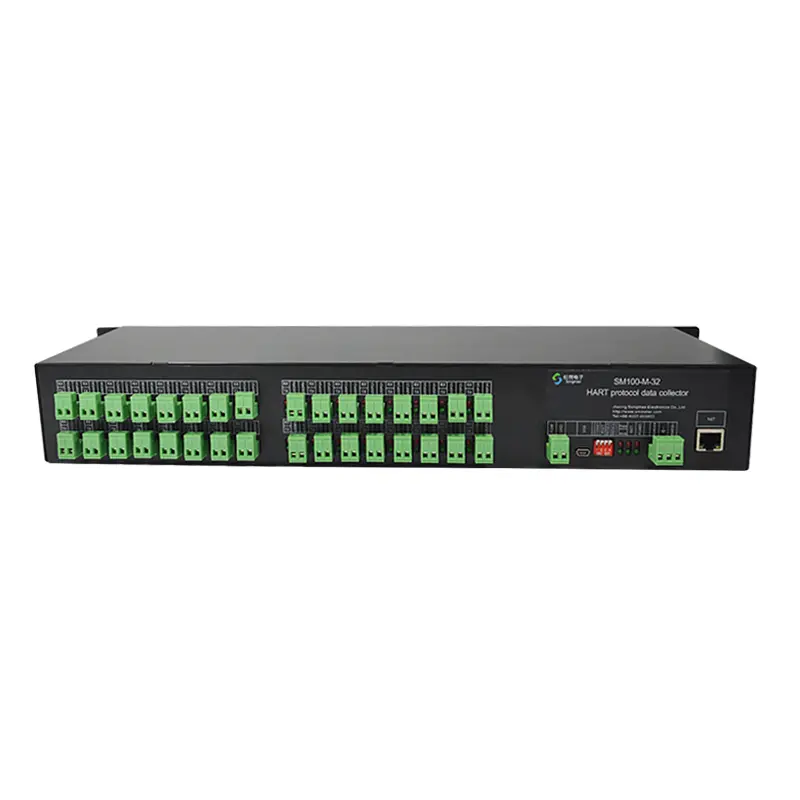

Introducing the SM100-M-32 HART Data Collector, a cutting-edge solution designed for industrial applications by a leading factory in China. This reliable product is powered by an advanced ARM microprocessor and a HART protocol modem chip, ensuring high performance and stability in demanding environments. Our data collector features standard RS485 and RS232 interfaces, along with a gateway, enabling seamless data transmission with intelligent HART protocol instruments, As a trusted supplier in the market, we ensure that the SM100-M-32 effortlessly converts data into MODBUS RTU or MODBUS TCP protocols, facilitating real-time data reading and monitoring. Experience exceptional data reliability and performance with our HART data collector, the ideal choice for manufacturers and industrial operators looking to enhance operational efficiency
The HART protocol uses the Bell202 Frequency Shift Keying (FSK) standard to superimpose a modulated digital signal on a 4 to 20 mA basis, allowing the HART protocol instrument to allow bidirectional data communication without interfering with the 4 to 20 mA analog signal. SM100-M series HART data collector is an intelligent converter for bidirectional modulation and demodulation of digital signal and analog signal.
Product Features
Support connection of 32 HART devices at the same time.
Support parallel and simultaneous scanning of all HART channels configured.
Three-terminal electromagnetic full quarantine (1500V) between HART channels and host power.
Modular design for easy maintenance and online replacement of modules.
Independent status indicator lights for each channel and equipment operation.
High-speed data refresh rate (per channel < 1 second).
Standard DIN rail mounting and 100Mbps Ethernet support.
Compatible with HART protocol Ver5.0 and above.
Main Parameters
Power Supply: DC 24V
Operating Current: < 80mA
Working Temp: -20 ℃ ~ + 75 ℃
Humidity: 5% ~ 95%
Shell Size: 482mm × 67mm × 160mm
Frequently Asked Questions
How many HART devices can the SM100-M series connect to?
The SM100-M series HART data collector supports the connection of up to 32 HART devices at the same time, allowing parallel and simultaneous scanning of all configured HART channels.
Does the data collector interfere with the 4-20 mA analog signal?
No, the equipment does not affect the transmission and accuracy of the 4 to 20 mA analog signal under normal operation, power failure, or fault conditions. The loop resistance remains ≤ 250 ohms.
What is the isolation performance of the device?
It features three-terminal electromagnetic full quarantine between HART channels and between the host power supply. The electromagnetic quarantine voltage is not less than 1500 V for the HART module, RS485, and Ethernet interfaces.
Does the SM100-M series supply power to field instruments?
No, this equipment does not supply power to field instruments. Field instruments must be powered independently according to their own requirements.
What mounting method is supported?
The device is designed for industrial environments and supports standard DIN rail mounting, ensuring easy installation in control cabinets.
What is the protocol compatibility?
The SM100-M series is fully compatible with the HART protocol version 5.0 and all subsequent higher versions.
