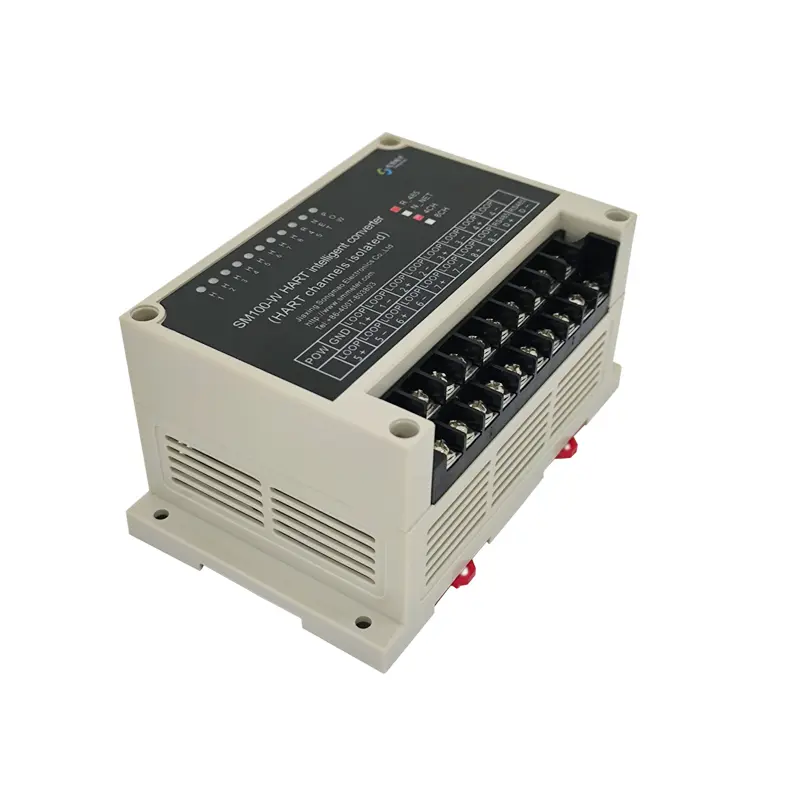

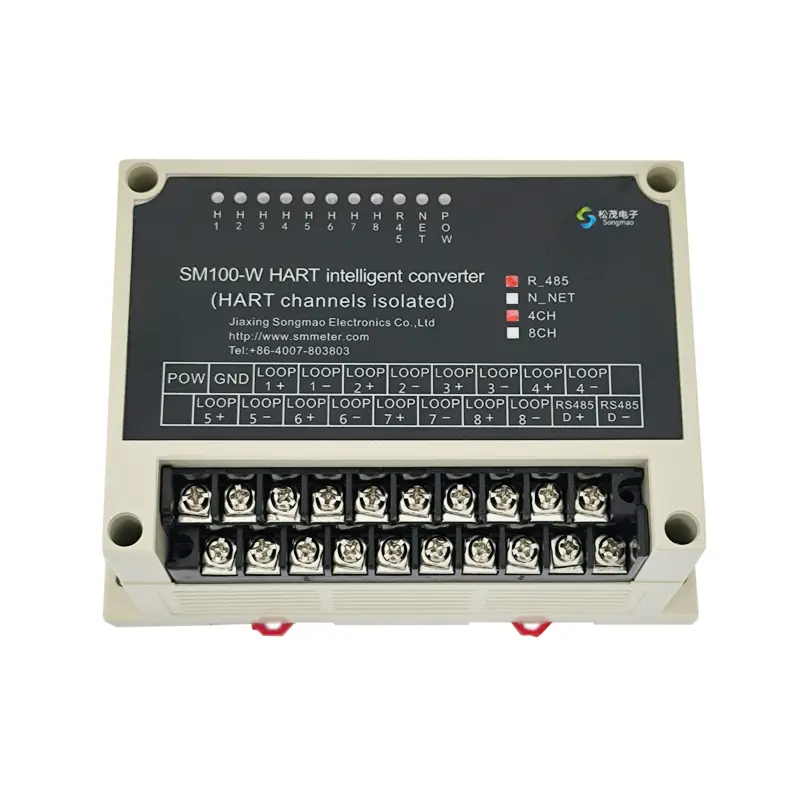

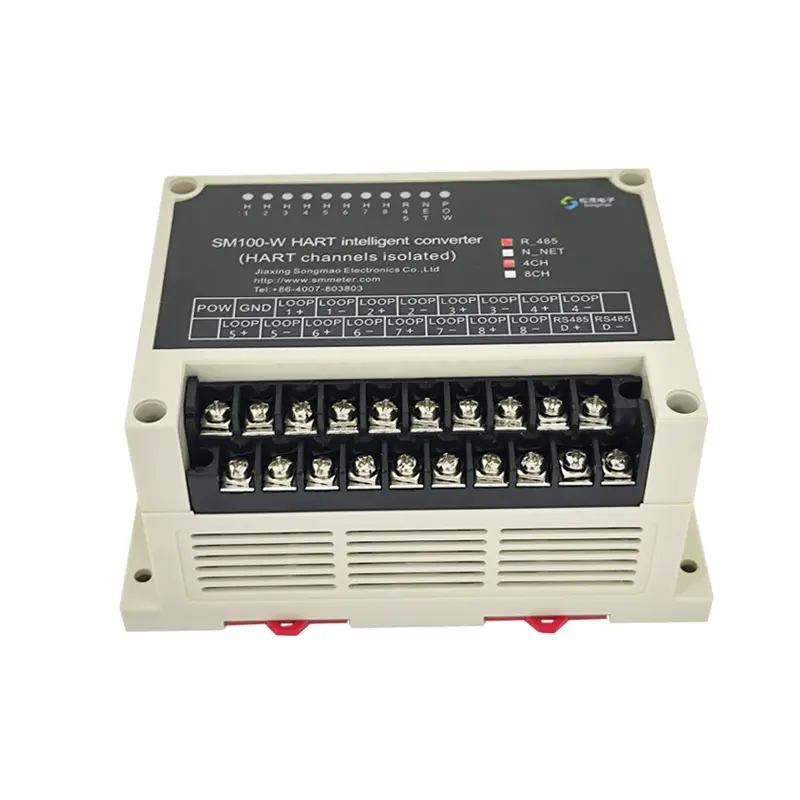

SM100-W series HART smart converter is a product developed by using ARM microprocessor, HART protocol modem chip and a lot of practical experience. It is designed according to the requirements of industrial products and has high reliability and stability. The intelligent converter is equipped with standard RS485 interface and gateway, which can transparently transmit data with intelligent instruments with HART protocol or convert to MODBUS _ RTU/MODBUS _ TCP protocol to read data, as to ensure real-time data transmission.

Send Inquiry

Product Description

Product Introduction

The ARM microprocessor, a HART protocol modem chip, and extensive field experience were integrated into the development of the SM100-W series HART smart converter. Designed to meet industrial-grade specifications, it ensures high stability and reliability. Featuring a standard RS485 interface and gateway, it supports conversion to MODBUS_RTU/MODBUS_TCP protocols or transparent data transmission with intelligent instruments using the HART protocol.

Using the Bell202 Frequency Shift Keying (FSK) standard, the HART protocol enables bidirectional digital data transmission superimposed on the 4-20 mA analog signal without interference. The SM100 series intelligent converter efficiently modulates and demodulates these signals in both directions.

Product Performance

● Standard RS485 interface with adjustable baud rate, parity, and settings, independent of the HART 1200 bps speed.
● Includes specialized configuration software for parameter adjustment and instrument communication.
● Full support for standard MODBUS_RTU and MODBUS_TCP protocols.
● Simultaneous connection of multiple HART protocol intelligent instruments.
● HART channel isolation ensures instrument current output remains unaffected.
● Fast data updates: 0.8 seconds for one set; 6.4 seconds for eight linked sets.
● Flexible installation via fixed mounting or standard industrial rail.

Main Parameters

Power Supply DC 12 to 24 V, 100 mA (Ripple < 200 mA)

Dimensions 145 mm (L) × 90 mm (W) × 73 mm (H)

Operating Temp -20°C to +80°C

Relative Humidity 10% to 80%

Technical Documentation

SM100-W.zip

SM100-W User_Manual.pdf

Communication Applications

Application with Rosemount instruments

SM100-W-N-4 and E-H flowmeter (MODBUS-TCP)

SM100-W and Siemens FU060 instrument

SM100-W and Fisher valve positioner 6200

SM100-W and EJA transmitter

Service Commitment: All products include a three-year warranty.

FAQ

1. Does the SM100-W need to set the HART address?

No, this model does not require setting a HART address and can be used directly after wiring is completed.

2. How far is the communication distance of SM100-W HART?

The HART instrument communication distance is approximately 200 meters with a stable signal.

3. What is the data update frequency?

The data update time for one set is 0.8 seconds. If eight sets are linked, the data updates in 6.4 seconds.

4. Which communication protocols are supported?

The converter supports standard RS485 communication, MODBUS_RTU, and MODBUS_TCP protocols.

5. What are the power supply requirements?

It requires a DC 12 to 24 V input with at least 100 mA current. The power supply ripple should not exceed 200 mA.

6. Can I connect multiple HART instruments simultaneously?

Yes, the SM100-W is designed to allow multiple intelligent instruments using the HART protocol to be connected at the same time.
