| Physical Dimensions (L × W × H) | 71mm × 52 mm × 22 mm |
| Operation Ambient Temperature | -20℃ ~ +80℃ |
| Relative Humidity | 10% ~ 80% |

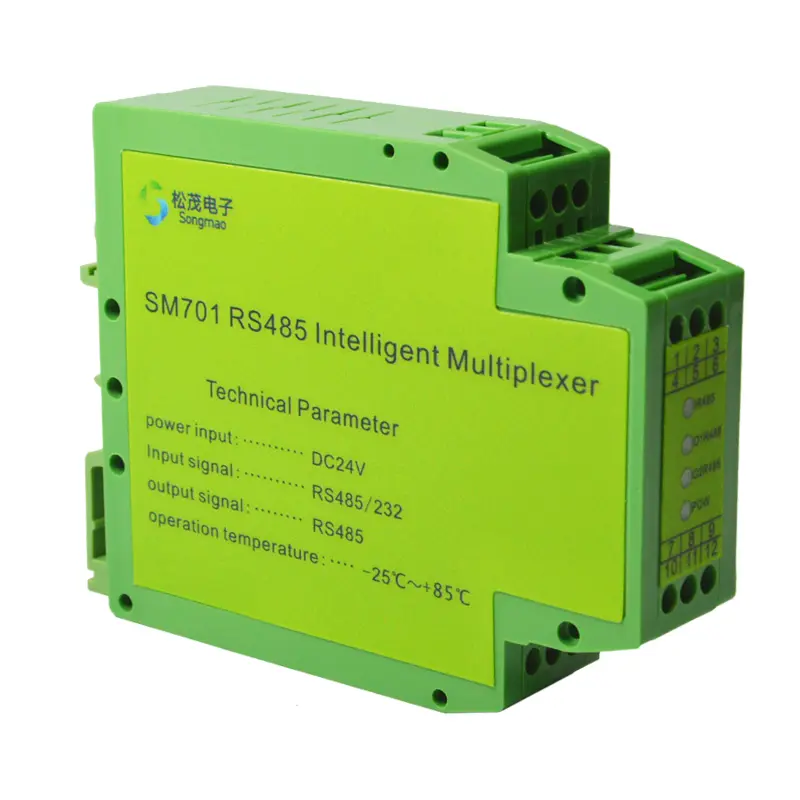

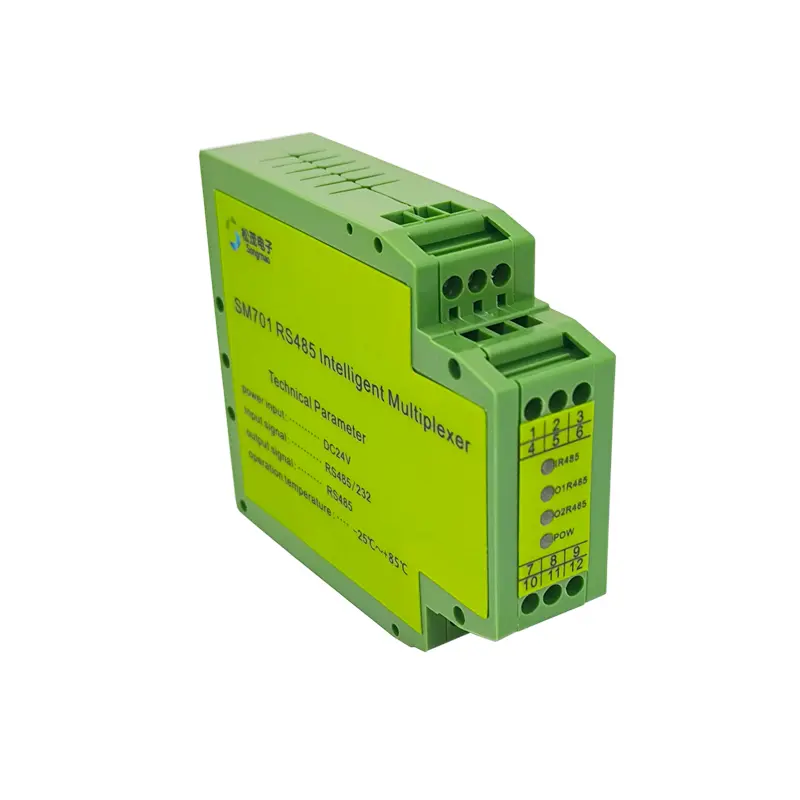

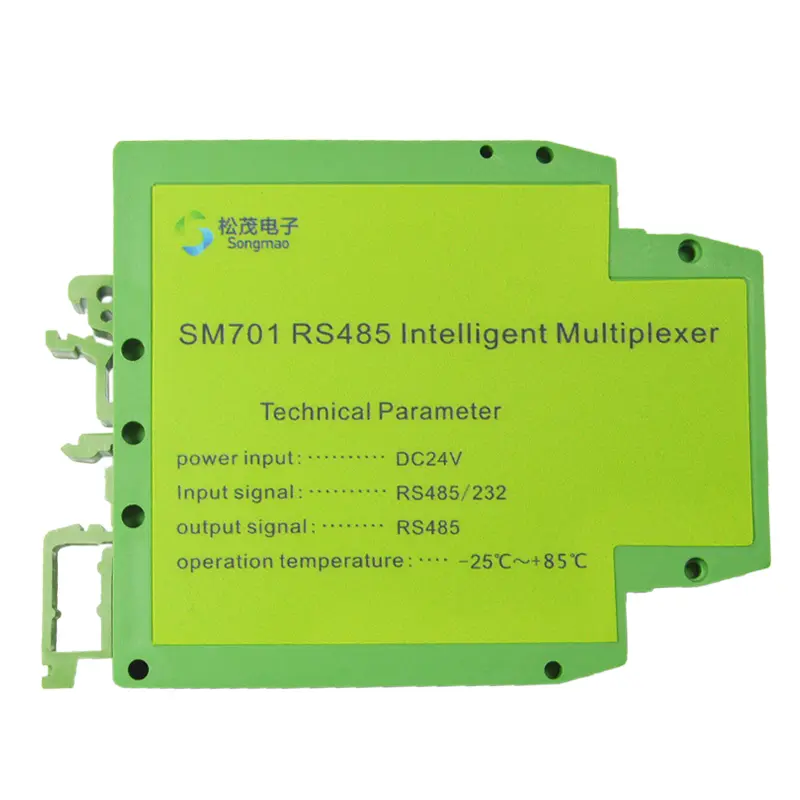

The device can convert one RS485 or RS232 interface into two RS485 interfaces, enabling communication with computers or servers.
Yes, it supports both standard and non-standard MODBUS_RTU protocol transmission.
No, the device has a power-off memory function, so parameters do not need to be reset after power off.
It requires an input voltage of DC 12 ~ 24V. The power supply ripple must not exceed 200 mA, and the power supply must provide 100mA.
The core physical dimensions are 71mm × 52 mm × 22 mm, while the overall shell size measures 96 mm (L) × 80 mm (W) × 25 mm (H).
The device operates reliably in ambient temperatures ranging from -20 ℃ to +80 ℃.
