Equipped with standard RS485 communication interface and gateway for easy parameter configuration.
Independent of the 1200 communication speed on the HART bus, significantly improving system operation speed.
Industrial universal module shell design, optimized for quick installation and commissioning.
Includes specialized configuration software for HART protocol intelligent instruments.
Supports standard industrial protocols including MODBUS_RTU and MODBUS_TCP.
Supports simultaneous connection and quarantine of multiple HART protocol instruments.
DC 12 ~ 24 V (100mA)
75 mm × 80 mm × 41 mm
-20 ℃ ~ + 80 ℃
10% ~ 80%
The SM101 series supports standard HART protocols as well as industrial MODBUS_RTU and MODBUS_TCP protocols, ensuring wide compatibility.
It supports the simultaneous connection of multiple HART protocol intelligent instruments, with each channel isolated to prevent interference.
The update time is approximately 0.8 seconds for a single set. For a system with four sets, the full update cycle is 3.2 seconds.

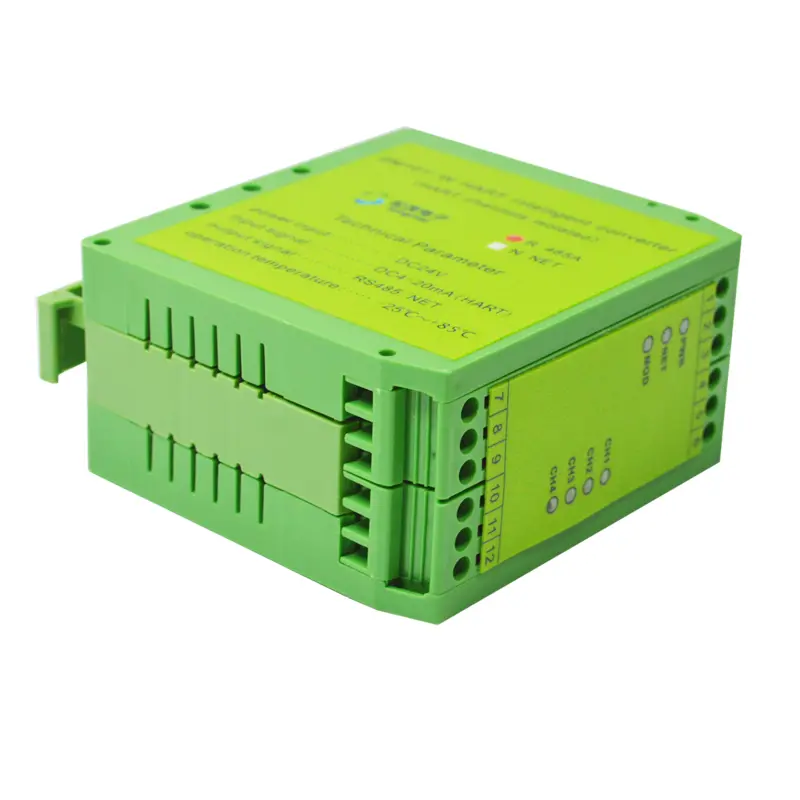

The device uses an industrial-grade shell and can be mounted using a standard DIN rail or via fixed installation methods.
No, the Bell202 FSK standard allows bidirectional digital communication without affecting the 4 to 20 mA analog signal.
Yes, the system supports a variety of special HART instruments and allows for customized instructions for reading specific data sets.
